HYSS Group supplies seamless stainless steel pipe and tube for industrial applications. The available page data covers ASTM A312, ASME B36.19 and ASME B36.10 dimensions, with TP304, TP304L, TP316 and TP316L among the listed grades.
Coil Tube
Seamless Stainless Steel Pipe/Tube
Seamless Carbon Steel Pipe/Tube
Seamless Duplex Steel Pipe/Tube
Seamless Alloy Steel Pipe/Tube
Seamless Special Steel Pipe/Tube
Seamless Steel Line Pipe
Electric Resistance Welding Steel Pipe/Tube
Longitudinally Submerged Arc Welding Steel Pipe/Tube
Spirally Submerged Arc Welding Steel Pipe/Tube
Coil Tube
NPS:
Welded Tube outside Diameter 1/8" thru 1 3/4"
Seamless Tube outside Diameter 1/16" thru 1 3/4"
Wall Thickness: 0.5mm - 4mm
End: Plain End (PE)
Type: Seamless/ Welded
Standard: ASME B36.19, ASME B36.10, (Customization Available)
Surface Finishing: Pickling, blasting, bright annealed, mill finish, polish finish 120#, 180#, 240#, 300#, 600# etc.
Material Range:
Stainless Steel: ASTM A213, A269, A249, A632 304/304L/304H, 310S, 316/316L, 317L, 321/321H, 347/347H etc.
Duplex Steel: ASTM A789, A790 S31803, S32205, S31500, S32550, S32750, S32760, S32950, etc.
Special Nickel Alloy Steel: ASTM B704, Inconel 600/625/800/825, Monel 400/K-500, Incoloy 800H/800HT, Hastelloy B2/C22/C276, 254SMO, 253MA, etc.

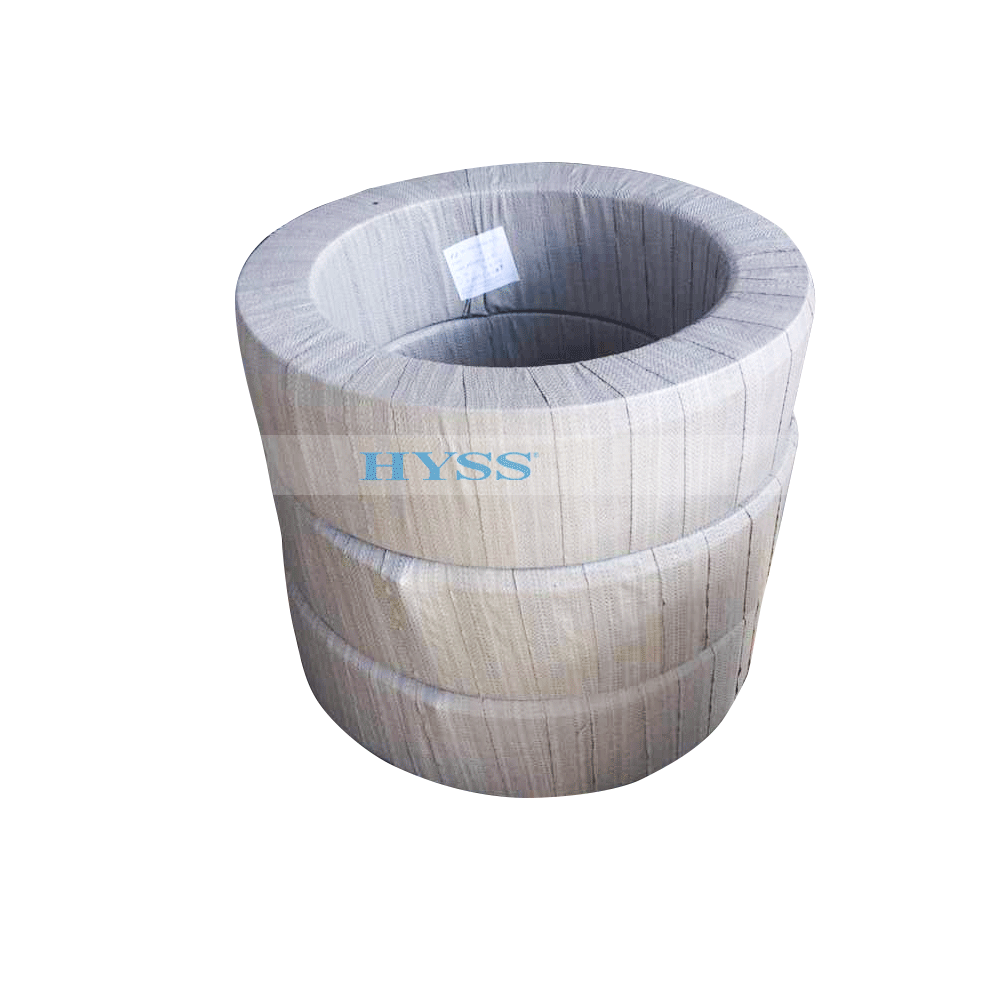

Package: PP wrapped/ bundled/ wooden box

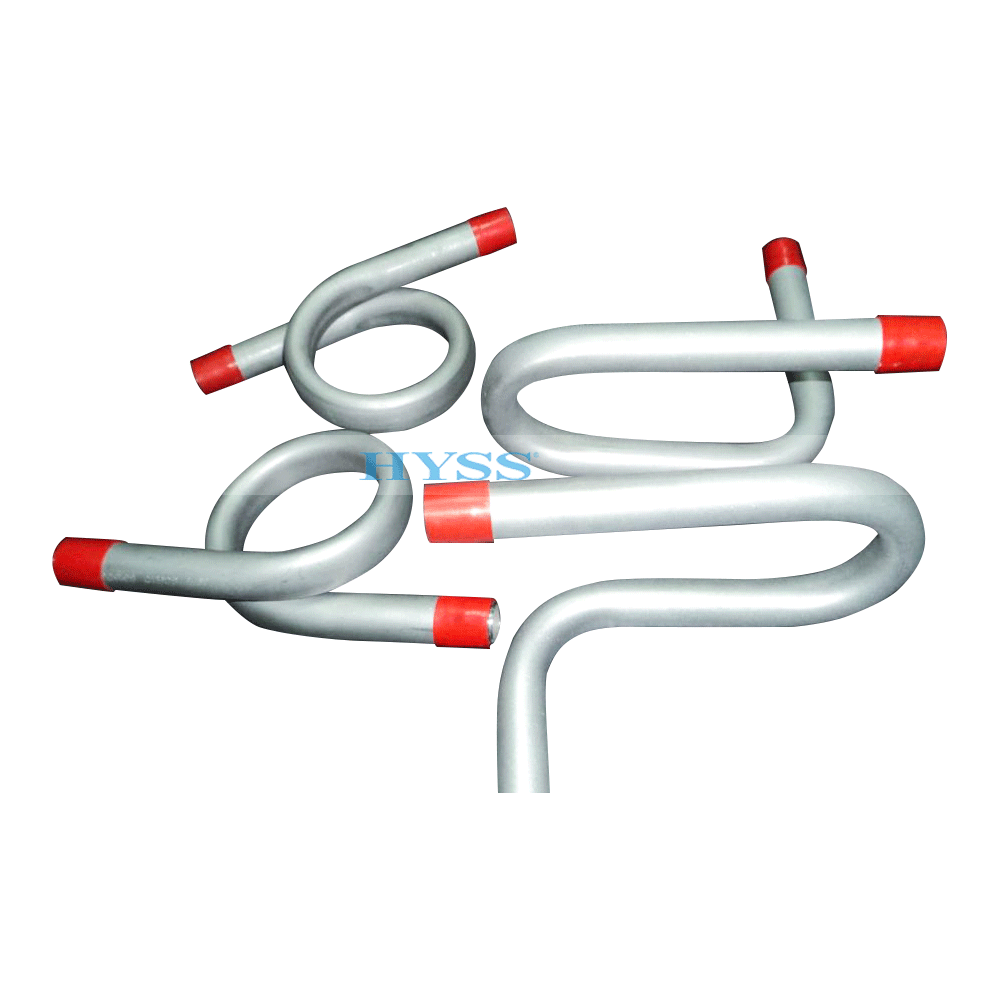

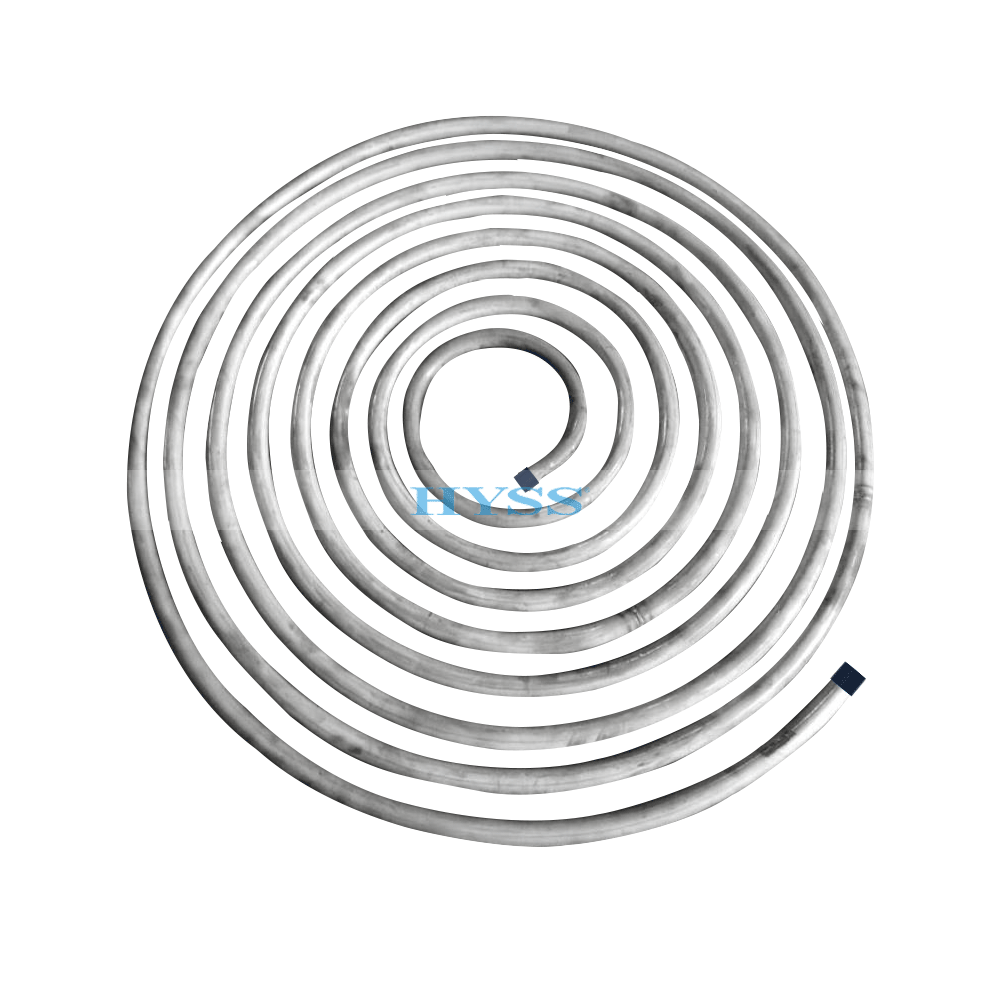

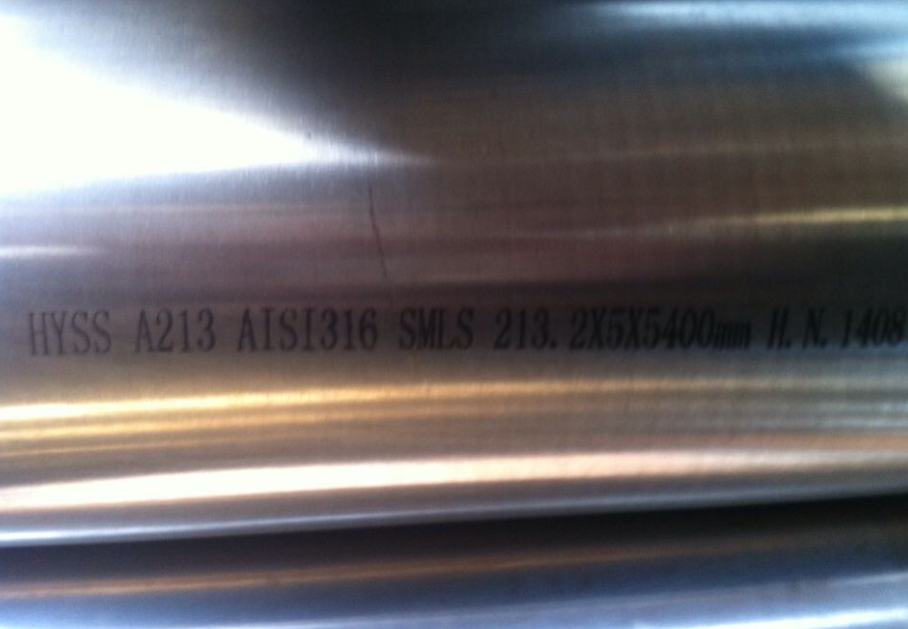

Pictures:
Dimensions as below:
| Norminal Pipe Size | Outside Diameter | Wall Thickness (mm) | ||||
| NPS | OD(mm) | 0.02" | 0.028" | 0.035" | 0.049" | 0.065" |
| 1/16" | 1.588 | 0.5 | - | - | - | - |
| 1/8" | 3.18 | 0.5 | 0.71 | 0.89 | - | - |
| 1/4" | 6.35 | 0.5 | 0.71 | 0.89 | 1.24 | 1.65 |
| 3/8" | 9.53 | - | - | 0.89 | 1.24 | 1.65 |
| 1/2" | 12.7 | - | - | 0.89 | 1.24 | 1.65 |
| 5/8" | 15.88 | - | - | 0.89 | 1.24 | 1.65 |
| 3/4" | 19.05 | - | - | 0.89 | 1.24 | 1.65 |
| 1" | 25.4 | - | - | 0.89 | 1.24 | 1.65 |
| 1 1/4" | 31.75 | - | - | - | 1.24 | 1.65 |
| 1 1/2" | 38.1 | - | - | - | 1.24 | 1.65 |
| 1 3/4" | 44.45 | - | - | - | 1.24 | 1.65 |
| Norminal Pipe Size | Outside Diameter | Wall Thickness (mm) | ||||
| NPS | OD(mm) | 0.083" | 0.095" | 0.109" | 0.125" | 0.165" |
| 1/16" | 1.588 | - | - | - | - | - |
| 1/8" | 3.18 | - | - | - | - | - |
| 1/4" | 6.35 | - | - | - | - | - |
| 3/8" | 9.53 | - | - | - | - | - |
| 1/2" | 12.7 | 2.11 | - | - | - | - |
| 5/8" | 15.88 | 2.11 | 2.41 | - | - | - |
| 3/4" | 19.05 | 2.11 | 2.41 | 2.77 | - | - |
| 1" | 25.4 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
| 1 1/4" | 31.75 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
| 1 1/2" | 38.1 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
| 1 3/4" | 44.45 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
lengthweightmmkg
