HYSS Group lists forged flanges for industrial piping, including weld neck, blind, slip-on, socket welding, lap joint and threaded types. The published product information references ASME/ANSI B16.5 and other flange standards, with material and pressure-class data.
ASME B16.47 Series A(MSS SP-44) Flanges
Weld Neck Flanges-ANSI B16.5
Slip on Flanges-ANSI B16.5
Weld Neck and Slip on Flanges-BS 3293
Blind Flanges-ANSI B16.5
Socket Welding Flanges-ANSI B16.5
Lap Jiont Flanges-ANSI B16.5
Threaded Flanges-ANSI B16.5
ASME B 16.47 Series B (API 605) Flanges
Link Blanks ASME B16.48
Orifice Flanges ANSI B16.36

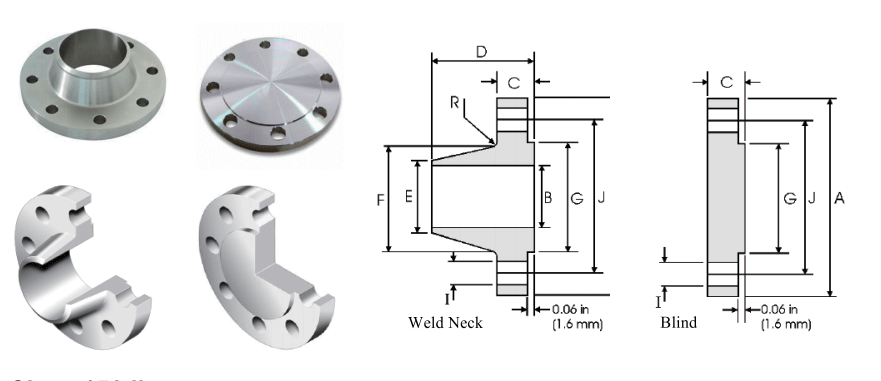

ASME B16.47 Series A (MSS SP-44) Flanges
Class 150 lb
| Pipe | Flange Data | Hub | ||||
Nominal Pipe Size | A | C | D | E | F | |
Overall Diameter | WNF Flange Thickness min | Blind Flange Thickness min | Overall Length WFN | Diameter at Weld Bevel | Hub Diameter | |
| mm | mm | mm | mm | mm | mm | |
| 22 | 749.30 | 45.97 | 45.97 | 149.35 | 558.80 | 609.60 |
| 26 | 869.95 | 68.33 | 68.33 | 120.65 | 660.40 | 676.15 |
| 28 | 927.10 | 71.37 | 71.37 | 125.48 | 711.20 | 726.95 |
| 30 | 984.25 | 74.68 | 74.68 | 136.65 | 762.00 | 781.05 |
| 32 | 1,060.5 | 81.03 | 81.03 | 144.53 | 812.80 | 831.85 |
| 34 | 1,111.3 | 82.55 | 82.55 | 149.35 | 863.60 | 882.65 |
| 36 | 1,168.4 | 90.42 | 90.42 | 157.23 | 914.40 | 933.45 |
| 38 | 1,238.3 | 87.38 | 87.38 | 157.23 | 965.20 | 990.60 |
| 40 | 1,289.1 | 90.42 | 90.42 | 163.58 | 1,016.0 | 1,041.4 |
| 42 | 1,346.2 | 96.77 | 96.77 | 171.45 | 1,066.8 | 1,092.2 |
| 44 | 1,403.4 | 101.60 | 101.60 | 177.80 | 1,117.6 | 1,143.0 |
| 46 | 1,454.2 | 103.12 | 103.12 | 185.67 | 1,168.4 | 1,196.9 |
| 48 | 1,511.3 | 107.95 | 107.95 | 192.02 | 1,219.2 | 1,247.7 |
| Pipe | Hub | Raised Face | Drilling Data | |||
Nominal Pipe Size | F | G | H | I | J | R |
Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | Diameter of Circles of Holes | Fillet | |
| mm | mm | mm | mm | mm | ||
| 22 | 609.60 | 641.35 | 20 | 35.05 | 692.15 | 9.65 |
| 26 | 676.15 | 749.30 | 24 | 35.05 | 806.45 | 9.65 |
| 28 | 726.95 | 800.10 | 28 | 35.05 | 863.60 | 11.18 |
| 30 | 781.05 | 857.25 | 28 | 35.05 | 914.40 | 11.18 |
| 32 | 831.85 | 914.40 | 28 | 41.15 | 977.90 | 11.18 |
| 34 | 882.65 | 965.20 | 32 | 41.15 | 1,028.7 | 12.70 |
| 36 | 933.45 | 1,022.4 | 32 | 41.15 | 1,085.9 | 12.70 |
| 38 | 990.60 | 1,073.2 | 32 | 41.15 | 1,149.4 | 12.70 |
| 40 | 1,041.4 | 1,124.0 | 36 | 41.15 | 1,200.2 | 12.70 |
| 42 | 1,092.2 | 1,193.8 | 36 | 41.15 | 1,257.3 | 12.70 |
| 44 | 1,143.0 | 1,244.6 | 40 | 41.15 | 1,314.5 | 12.70 |
| 46 | 1,196.9 | 1,295.4 | 40 | 41.15 | 1,365.3 | 12.70 |
| 48 | 1,247.7 | 1,358.9 | 44 | 41.15 | 1,422.4 | 12.70 |
Class 300 lb
| Pipe | Flange Data | Hub | ||||
Nominal Pipe Size | A | C | D | E | F | |
Overall Diameter | WNF Flange Thickness min | Blind Flange Thickness min | Overall Length WFN | Diameter at Weld Bevel | Hub Diameter | |
| mm | mm | mm | mm | mm | mm | |
| 22 | 838.20 | 66.55 | 66.55 | 165.10 | 558.80 | 641.35 |
| 26 | 971.55 | 79.25 | 84.07 | 184.15 | 660.40 | 720.85 |
| 28 | 1,035.1 | 85.85 | 90.42 | 196.85 | 711.20 | 774.70 |
| 30 | 1,092.2 | 91.95 | 95.25 | 209.55 | 762.00 | 827.02 |
| 32 | 1,149.4 | 98.55 | 100.08 | 222.25 | 812.80 | 881.13 |
| 34 | 120.5 | 101.60 | 104.65 | 231.65 | 863.60 | 936.75 |
| 36 | 1,270.0 | 104.65 | 111.25 | 241.30 | 914.40 | 990.60 |
| 38 | 1,168.4 | 107.95 | 107.95 | 180.85 | 965.20 | 993.65 |
| 40 | 1,238.3 | 114.30 | 114.30 | 193.55 | 101.6 | 1,047.8 |
| 42 | 1,289.1 | 119.13 | 119.13 | 200.15 | 106.7 | 1,098.6 |
| 44 | 1,352.6 | 123.95 | 123.95 | 206.25 | 111.8 | 1,149.4 |
| 46 | 1,416.1 | 128.52 | 128.52 | 215.90 | 116.8 | 1,203.5 |
| 48 | 1,466.9 | 133.35 | 133.35 | 223.77 | 121.9 | 1,254.3 |
| Pipe | Hub | Raised Face | Drilling Data | |||
Nominal Pipe Size | F | G | H | I | J | R |
Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | Diameter of Circles of Holes | Fillet | |
| mm | mm | mm | mm | mm | ||
| 22 | 641.35 | 641 .35 | 24 | 41.15 | 742.95 | 9.65 |
| 26 | 720.85 | 749.30 | 28 | 44.45 | 876.30 | 9.65 |
| 28 | 774.70 | 800.10 | 28 | 44.45 | 939.80 | 11.18 |
| 30 | 827.02 | 857.25 | 28 | 47.75 | 996.95 | 11.18 |
| 32 | 881.13 | 914.40 | 28 | 50.80 | 1,054.10 | 11.18 |
| 34 | 936.75 | 965.20 | 28 | 50.80 | 1,104.90 | 12.70 |
| 36 | 990.60 | 102.24 | 32 | 53.85 | 1,168.40 | 12.70 |
| 38 | 993.65 | 102.87 | 32 | 41.15 | 1,092.20 | 12.70 |
| 40 | 1,047.8 | 108.59 | 32 | 44.45 | 1,155.70 | 12.70 |
| 42 | 1,098.6 | 113.67 | 32 | 44.45 | 1,206.60 | 12.70 |
| 44 | 1,149.4 | 119.38 | 32 | 47.75 | 1,263.70 | 12.70 |
| 46 | 1,203.5 | 124.40 | 28 | 50.80 | 1,320.80 | 12.70 |
| 48 | 1,254.3 | 130.18 | 32 | 50.80 | 1371 .6 | 12.70 |
Class 600 lb
| Pipe | Flange Data | Hub | ||||
Nominal Pipe Size | A | C | D | E | F | |
Overall Diameter | WNF Flange Thickness min | Blind Flange Thickness min | Overall Length WFN | Diameter at Weld Bevel | Hub Diameter | |
| mm | mm | mm | mm | mm | mm | |
| 22 | 869.95 | 95.25 | 95.25 | 196.85 | 558.80 | 666.75 |
| 26 | 1,016.0 | 107.95 | 125.48 | 222.25 | 660.40 | 747.78 |
| 28 | 1,073.2 | 111.25 | 131.83 | 234.95 | 711.20 | 803.15 |
| 30 | 1,130.3 | 114.30 | 139.70 | 247.65 | 762.00 | 862.08 |
| 32 | 1,193.8 | 117.35 | 147.57 | 260.35 | 812.80 | 917.45 |
| 34 | 1,244.6 | 120.65 | 153.92 | 269.75 | 863.60 | 973.07 |
| 36 | 1,314.5 | 123.95 | 162.05 | 282.45 | 914.40 | 1,031.75 |
| 38 | 1,270.0 | 152.40 | 155.45 | 254.00 | 965.20 | 1,022.35 |
| 40 | 1,320.8 | 158.75 | 162.05 | 263.65 | 1,016.0 | 1,073.2 |
| 42 | 1,403.4 | 168.15 | 171.45 | 279.40 | 1,066.8 | 1,127.3 |
| 44 | 1,454.2 | 172.97 | 177.80 | 289.05 | 1,117.6 | 1,181.1 |
| 46 | 1,511.3 | 179.32 | 185.67 | 299.97 | 1,168.4 | 1,235.0 |
| 48 | 1,593.9 | 188.98 | 195.33 | 315.98 | 1,219.2 | 1,289.1 |
| Pipe | Hub | Raised Face | Drilling Data | |||
Nominal Pipe Size | F | G | H | I | J | R |
Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | Diameter of Circles of Holes | Fillet | |
| mm | mm | mm | mm | mm | ||
| 22 | 666.75 | 641.35 | 24 | 47.75 | 777.75 | 11.18 |
| 26 | 747.78 | 749.30 | 28 | 50.80 | 914.40 | 12.70 |
| 28 | 803.15 | 800.10 | 28 | 53.85 | 965.20 | 12.70 |
| 30 | 862.08 | 857.25 | 28 | 53.85 | 1,022.4 | 12.70 |
| 32 | 917.45 | 914.40 | 28 | 60.45 | 1,079.5 | 12.70 |
| 34 | 973.07 | 965.20 | 28 | 60.45 | 1,130.3 | 14.22 |
| 36 | 1,031.75 | 1,022.35 | 28 | 66.55 | 1,193.0 | 14.22 |
| 38 | 1,022.35 | 1,054.10 | 28 | 60.45 | 1,162.1 | 14.22 |
| 40 | 1,073.2 | 1,111.3 | 32 | 60.45 | 1,212.9 | 14.22 |
| 42 | 1,127.3 | 1,168.4 | 28 | 66.55 | 1,282.7 | 14.22 |
| 44 | 1,181.1 | 1,225.6 | 32 | 66.55 | 1,333.5 | 14.22 |
| 46 | 1,235.0 | 1,276.4 | 32 | 66.55 | 1,390.7 | 14.22 |
| 48 | 1,289.1 | 1,333.5 | 32 | 73.15 | 1,460.5 | 14.22 |
Class 900 lb
| Pipe | Flange Data | Hub | ||||
Nominal Pipe Size | A | C | D | E | F | |
Overall Diameter | WNF Flange Thickness min | Blind Flange Thickness min | Overall Length WFN | Diameter at Weld Bevel | Hub Diameter | |
| mm | mm | mm | mm | mm | mm | |
| 26 | 1,085.9 | 139.70 | 160.27 | 285.75 | 660.4 | 774.70 |
| 28 | 1,168.4 | 142.75 | 171.45 | 298.45 | 711.2 | 831.85 |
| 30 | 1,231.9 | 149.35 | 182.37 | 311.15 | 762.0 | 889.00 |
| 32 | 1,314.5 | 158.75 | 193.55 | 330.20 | 812.8 | 946.15 |
| 34 | 1,397.0 | 165.10 | 204.72 | 349.25 | 863.6 | 1,006.4 |
| 36 | 1,460.5 | 171.45 | 214.38 | 361.95 | 914.4 | 1,063.8 |
| 38 | 1,460.5 | 190.50 | 215.90 | 352.55 | 965.2 | 1,073.2 |
| 40 | 1,511.3 | 196.85 | 223.77 | 363.47 | 1,016.0 | 1,127.3 |
| 42 | 1,562.1 | 206.25 | 231.65 | 371.35 | 1,066.8 | 1,176.3 |
| 44 | 1,648.0 | 214.38 | 242.82 | 390.65 | 1,117.6 | 1,235.0 |
| 46 | 1,733.6 | 225.55 | 255.52 | 410.97 | 1,168.4 | 1,292.4 |
| 48 | 1,784.4 | 233.43 | 263.65 | 419.10 | 1,219.2 | 1,343.2 |
| Pipe | Hub | Raised Face | Drilling Data | |||
Nominal Pipe Size | F | G | H | I | J | R |
Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | Diameter of Circles of Holes | Fillet | |
| mm | mm | mm | mm | mm | ||
| 26 | 774.70 | 749.30 | 20 | 73.15 | 952.50 | 11.18 |
| 28 | 831.85 | 800.10 | 20 | 79.25 | 1,022.4 | 12.70 |
| 30 | 889.00 | 857.25 | 20 | 79.25 | 1,085.9 | 12.70 |
| 32 | 946.15 | 914.40 | 20 | 85.85 | 1,155.7 | 12.70 |
| 34 | 1,006.4 | 965.20 | 20 | 91.95 | 1,225.6 | 14.22 |
| 36 | 1,063.8 | 1,022.4 | 20 | 91.95 | 1,289.1 | 14.22 |
| 38 | 1,073.2 | 1,098.6 | 20 | 91.95 | 1,289.1 | 19.05 |
| 40 | 1,127.3 | 1,162.1 | 24 | 91.95 | 1,339.9 | 20.57 |
| 42 | 1,176.3 | 1,212.9 | 24 | 91.95 | 1,390.7 | 20.57 |
| 44 | 1,235.0 | 1,270.0 | 24 | 98.55 | 1,463.6 | 22.35 |
| 46 | 1,292.4 | 1,333.5 | 24 | 104.65 | 1,536.7 | 22.35 |
| 48 | 1,343.2 | 1,384.3 | 24 | 104.65 | 1,587.5 | 23.88 |
Notes:
ASME 816.47 Series A flanges {>NPS 26) are MMS SP-44 flanges. MSS SP-44 also covers NPS 12 to NPS 24 flanges which are equivalent to ASME 816.5. MSS SP-44 is the only source for the NPS 22 flange dimensions above.
Dimension 8 is to be specified by the purchaser.
Flat face flanges may be provided at full thickness, C, or with raised face removed (the latter is non-standard).
WNF= Weld neck flange
The large end of the hub may be tapered or straight.
Wide range of raw-materials for flanges
Alloy Steel: ASTM A182 F11 1 1/4% Cr 1/2% Mo F5 F9 F91
ASTM A182 F22 2 1/4% Cr 1% Mo F92 F911
ASTM A350 LF2 LF3 LF6
etc...
Carbon Steel: ASTM A 105 A105N
etc...
Stainless Steel: ASTM A182 F316 F316L F317 F321
ASTM A l 82 F304 F310 F904L F317L F347H
etc...
Duplex Steel: ASTM A182 F51 F53 F54 F55 F57
etc...
• Ratings from 300 lb to 2500 lb
• Sizes from 1" Nominal Bore
• Orifice flanges are intended for use instead of standard pipe flanges
• When an orifice plate or flow nozzle must be installed.
• Sure tappings are machined into the orifice flange, making separate
• Orifice carriers or tappings in the pipe wall is unnecessary.
